HDB Aircon Installation in Singapore: A Complete Planning Guide

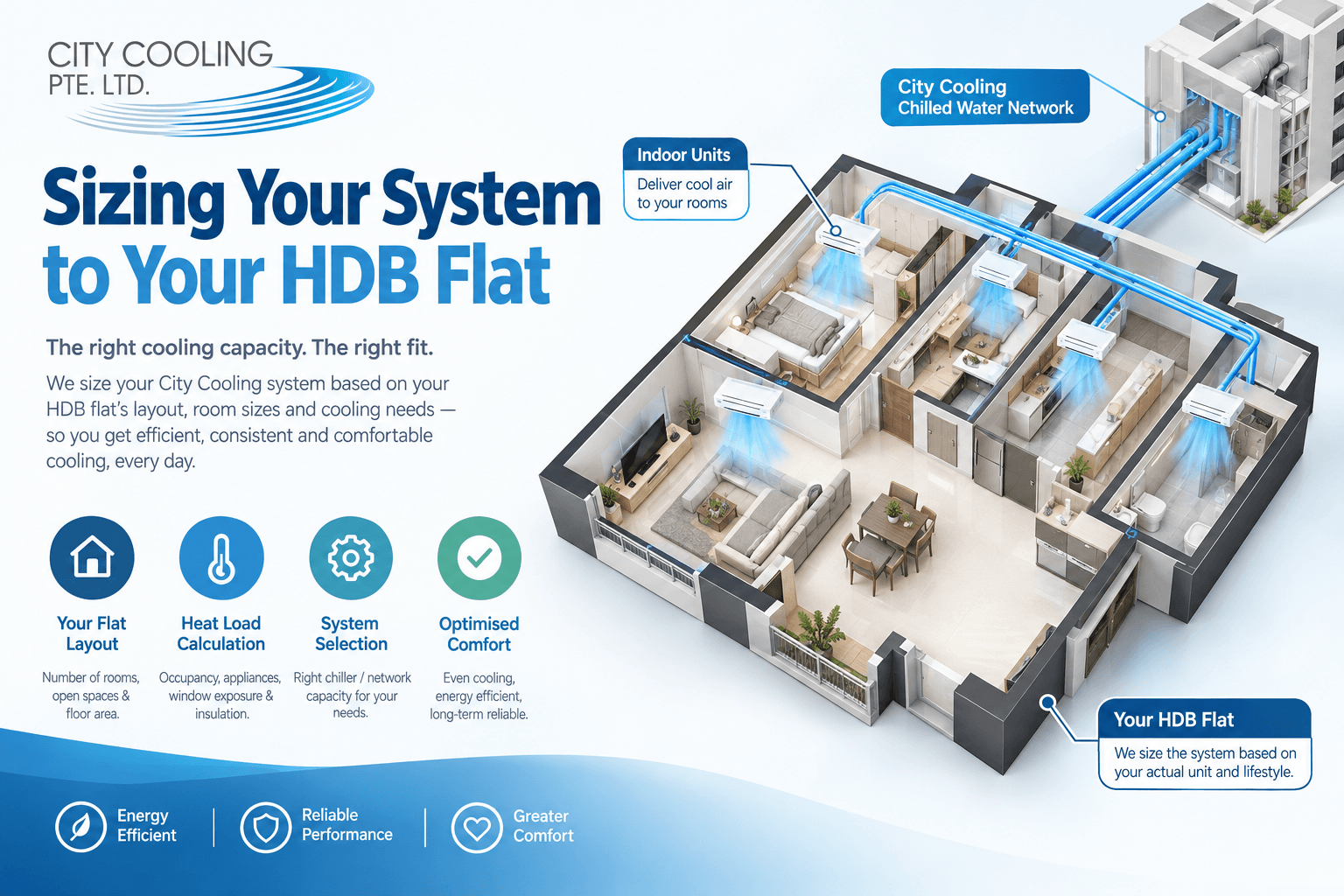

Why it matters: Aircon capacity is measured in BTU (British Thermal Units). Undersizing forces the compressor to run harder for longer, shortening its lifespan; oversizing wastes energy and cools unevenly, cycling on and off before the room dehumidifies properly.

General reference: Small bedroom (~10–12 sqm): 7,000–9,000 BTU · Master bedroom (~13–16 sqm): 9,000–12,000 BTU · Living/dining, 3–4 room flat (~20–28 sqm): 12,000–18,000 BTU · Living/dining, 5-room/Executive flat (~28–35 sqm): 18,000–24,000 BTU.

What to do: Treat these as starting references only — a technician’s on-site assessment is the accurate way to confirm capacity, since ceiling height, sun exposure, and room layout all affect the real figure.

What’s happening: Most HDB flats use a multi-split configuration because ledge space for outdoor units is limited. System 2 connects two indoor units to one outdoor compressor, System 3 connects three, and System 4 connects four — matching the typical bedroom-plus-living-room count in 3-room to 5-room flats.

The trade-off: A multi-split system saves ledge space and can be more cost-efficient upfront, but if the shared outdoor compressor fails, every connected room loses cooling at once. A single-split system per room isolates that risk and costs more initially, but means one fault doesn’t take down your whole flat’s cooling.

What to do: Match the system to how many rooms you actually want cooled, and weigh the shared-compressor risk against the ledge space and budget you have.

Why it matters: These requirements come from HDB’s official renovation guidelines for air-conditioner installation works. Non-compliance can mean mandatory rectification at your own cost.

The five points to confirm before booking:
1. Only a BCA-trained technician may carry out the installation — a legal requirement, not a preference.
2. The outdoor condensing unit must sit on your flat’s designated aircon ledge only, secured with stainless steel brackets.
3. Refrigerant piping must be routed internally within the flat — not along external walls or through common corridors.
4. Condensate drainage must discharge to a floor trap inside the flat, not onto the ledge, facade, or any common area.
5. An installation report must be submitted to your local HDB branch within 14 days of completing the work.

What to do: Ask your installer to confirm all five points are included in their quote — the cheapest quote from an unqualified installer can end up costing more if the installation fails inspection.

The typical sequence: Pre-installation site check (ledge access, piping route, existing wiring) → outdoor unit mounted on the designated ledge with stainless steel brackets → indoor unit(s) mounted, piping routed internally and finished with PVC trunking → electrical connection and isolator switch installed → pressure test and refrigerant charge → cooling performance test demonstrated to you → installer files the HDB installation report within 14 days.

How long it takes: A standard 2 to 3 unit HDB installation usually takes a full working day. Larger multi-split setups, or installations requiring longer piping runs, may need more time — your installer should confirm this before the appointment date.

What’s happening: Newer HDB flats are increasingly fitted for R32 refrigerant systems, the current standard for energy efficiency and lower environmental impact compared to older R22 units.

What to do: If you’re installing in a new BTO flat or replacing an old R22 unit, confirm R32 compatibility with your installer. R22 is being phased out globally, and both the refrigerant and spare parts for R22 systems are becoming scarcer and more expensive.

What to do: Once installed, the general benchmark for HDB residential servicing is every 3 to 4 months, with a full chemical wash or overhaul roughly once a year depending on usage.

Our complete HDB aircon servicing guide covers a maintenance schedule and common issues in more depth.

What to check before booking: Confirm the technician’s BCA training credentials, ask whether the quote includes the 14-day HDB installation report submission, and request references or past HDB installation photos where possible.

Red flags: A quote that’s silent on ledge brackets, internal piping routing, or drainage compliance is a sign the installer may not be familiar with HDB’s rules — confirm these details in writing before you commit.

What to do: Get at least two quotes, and compare not just price but what compliance work is actually included.

What affects the price: Costs vary by brand tier, energy label rating, and whether existing piping can be reused. The ranges below are general Singapore market indicators — request a site assessment for an exact figure.
